Turbulent Channel

HydroGym contains a 3D channel flow written in the differentiable programming language JAX. The channel flow is of size $[2\pi, \pi, 2]$, where $z$ is the wall-normal direction. The channel flow is run at $Re_\tau = 180$, and is pre-configured to be controlled with 24 wall-normal jets evenly spaced throughout the wall. The observation value consists of evenly spaced x-velocity values sampled from $y^+ \approx 9$.

Initializing the Environment

To begin setting up the environment, we first have to import JAX, the necessary modules from HydroGym. Then we will be able to construct the environment, and work with it.

import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt

# Import channel flow and environment configuration
from hydrogym.jax.envs.channel import ChannelFlowSpectralEnv

env_config = {}
env = ChannelFlowSpectralEnv(env_config)
params = env.default_params

to have a clean working environment, we will also need to reset the environment to its initial conditions. These are provided in the HuggingFace initial fields folder.

key = jax.random.PRNGKey(0)
obs, state = env.reset_env(key, params)
print("Initial state shape U:", state.U.shape)
print("Initial state shape V:", state.U.shape)
print("Initial state shape W:", state.U.shape)
print("Initial mean observation value: ", jnp.mean(obs))

at which point we can begin to run the environment.

A First Environment Step

To now interact with the environment, we need to define an action we wish to take. For this we can rely on the default parameters provided by the environment to give us the right dimensions.

action = jnp.zeros((params.action_dim,))

Now we can step the environment forward by providing the action to the environment.

obs, state, reward, done, info = env.step_env(key, state, action, params)

print("Mean observation value: ", jnp.mean(obs))
print("Reward:", reward)

to validate the right performance of the environment, we should see approximately the following output:

Type of Variable	Value
Mean Observation Value	3.3810941472675573
Reward	-0.3378005217734956

Visualizing U without Control

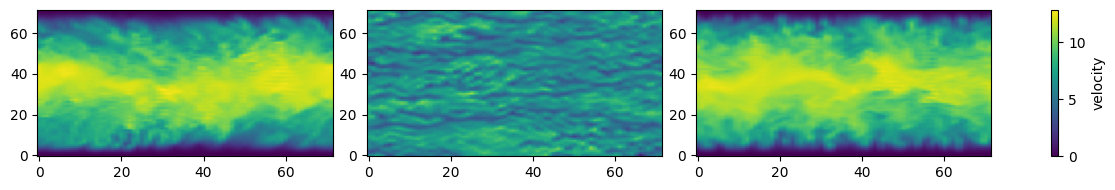

After running the environment step, the state class contains (U,V,W) fields which can be accessed and visualized:

U = state.U
y_idx = 36
z_idx = 8
x_idx = 36
U_slice_xz = U[:, y_idx, :]
U_slice_xy = U[:, :, z_idx]
U_slice_yz = U[x_idx, :, :]

fig, axes = plt.subplots(1, 3, figsize=(10, 2))
slices = [U_slice_xz, U_slice_xy, U_slice_yz]

vmin = min(s.min() for s in slices)
vmax = max(s.max() for s in slices)

for (
    ax,
    slice_,
) in zip(axes, slices):
    im = ax.imshow(
        slice_.T,
        origin="lower",
        aspect="auto",
        vmin=vmin,
        vmax=vmax,
    )
fig.subplots_adjust(right=0.9)

plt.tight_layout(rect=[0, 0, 1.25, 1])
fig.colorbar(im, ax=axes, label="velocity")
plt.show()

At which point we can also explore the performance of the full suction jets. Here we will perform $6$ steps in the environment, and then inspect the mean observation values and rewards after each step.

key = jax.random.PRNGKey(0)
obs, state = env.reset_env(key, params)

# action = jax.random.normal(key, (params.action_dim,))
action = 0.01 * jnp.ones((params.action_dim,))
num_steps = 6

for i in range(num_steps):
    obs, state, reward, done, info = env.step_env(key, state, action, params)
    print("Mean observation value after environment step: ", jnp.mean(obs))
    print("Reward:", reward)

The performance you should see should look somewhat like the following:

Steps	Mean Observation Value	Reward
1	3.3811771453005943	-0.3379856556277938
2	3.374816954342459	-0.3296336066794982
3	3.3952557633014124	-0.32246759246707535
4	3.4049538883848918	-0.317317974468479
5	3.369506324681792	-0.31543620069660644
6	3.3887298110075403	-0.31826735862330213

Visualizing U after a few Steps in the Environment with Control

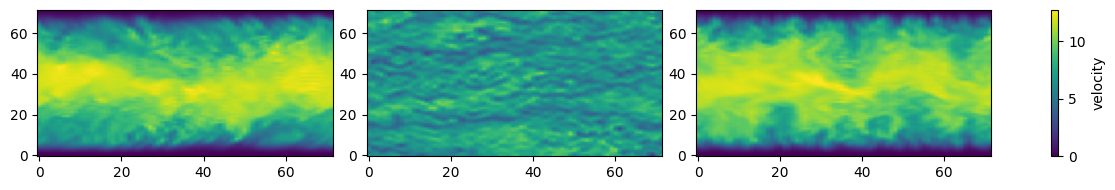

To visualize the flow after a few steps in the environment with control, we can use the same code as above, i.e.

U = state.U
y_idx = 36
z_idx = 9
x_idx = 36
U_slice_xz = U[:, y_idx, :]
U_slice_xy = U[:, :, z_idx]
U_slice_yz = U[x_idx, :, :]

fig, axes = plt.subplots(1, 3, figsize=(10, 2))
slices = [U_slice_xz, U_slice_xy, U_slice_yz]

vmin = min(s.min() for s in slices)
vmax = max(s.max() for s in slices)

for (
    ax,
    slice_,
) in zip(axes, slices):
    im = ax.imshow(
        slice_.T,
        origin="lower",
        aspect="auto",
        vmin=vmin,
        vmax=vmax,
    )
fig.subplots_adjust(right=0.9)

plt.tight_layout(rect=[0, 0, 1.25, 1])
fig.colorbar(im, ax=axes, label="velocity")
plt.show()
